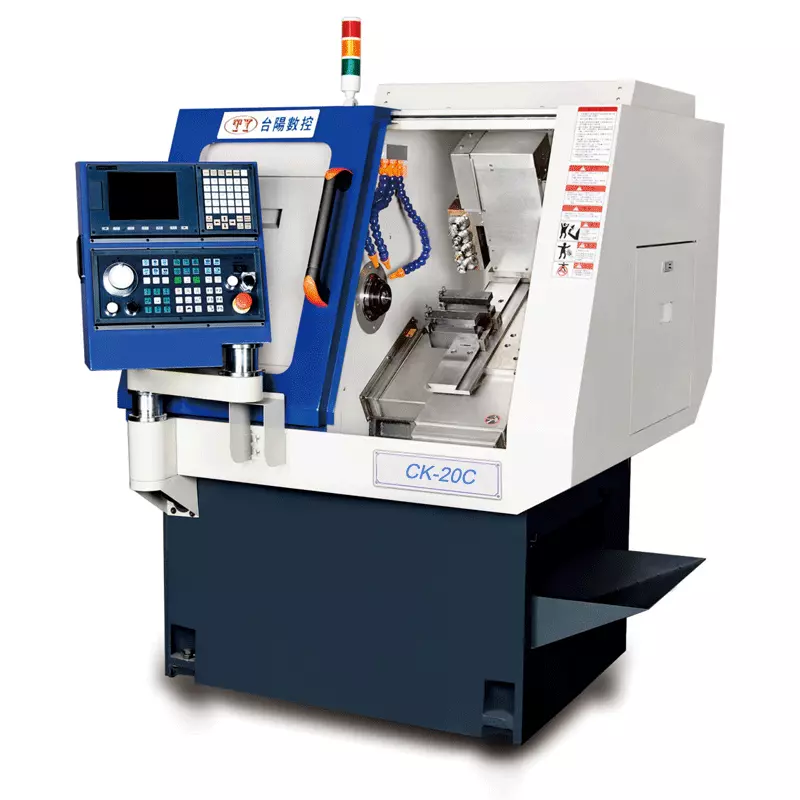

Turning and milling compound machine CK-20C

Brand: Taiyang

MOQ: 10 Pieces

Delivery time: 7 Day

1.Overall casting design, small footprint and space saving;

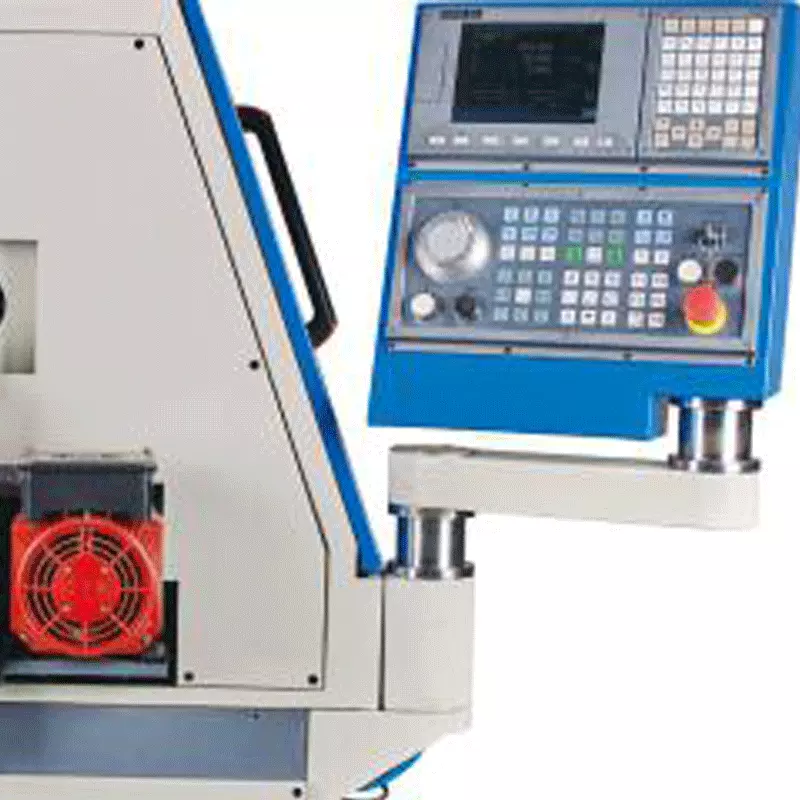

2. The control box is designed as a rotating swing arm, which is easy tooperate;

3.Pneumatic clamping of the spindle, faster opening and closing;

4. The main shaft is designed without oil cylinder, and the speed canreach 7000r.p.m;

5.Adopt grinding-grade large-pitch screw, fast running speed andstrong rigidity;

6.High-power cooling water pump, sufficient cooling, longer tool life;

Previous: Turning and milling compound machine CK-15C

Next: Turning and milling compound machine CK-25C

Leave a Message

If you have more information you would like to know, you can leave a message to us through the form below, and our staff will contact you as soon as possible

Name *

E-mail *

Phone

Company

Message *

Products

Knife arrangement machine

Turning and milling compound machine

Knife tower machine

Dual spindle and dual blade tower turning and milling composite machine

Knifetower tail top machine

Automtic lathe

Main accessories of automatic lathe

Latest News

Advantages of Turning and Milling Composite Machines in the Processing of Complex Parts

Applications of High-Precision CNC Lathes in the Aerospace Industry

How to optimize the production efficiency and processing accuracy of automatic lathes

How turning and milling composite machines adapt to small-batch, multi-variety production demands

Breakthroughs and applications of high-precision CNC lathes in micro-nano processing

Contact Us

Phone:

+86 13537157072

E-mail:

sunny@yuyangmachine.com

Whatsapp:

+86 15814115868

Address:

No.4, Lane 1, Hebin Road, Yongkou, Houjie Town,Dongguan City, Guangdong Province

Website:

ltem	Standard configuration /Optional configuration
System	Taiwan New Era/optional Taiwan Baoyuan
Drive	Weichuang/optional Taiwan New Era/Japan Yaskawa
Spindle	Taiwan Kunjing
Screw rod	Taiwan Yintai/Shangyin
Guide/ sliding block	Taiwan Yintai/Shangyin
Bearing	Japan NSK/NACHI
Electical appliance	France Schneider
Spindle motor	Koten

ltem	CK-20C		Unit
Special cases	Name	Specifications
Machining range	Processing workpiece length	130	mm
	with Y axcis	4 power heads	mm
	Bar through hole diameter	Φ15/Φ20/Φ25	mm
X/Z Axis Movement	X-axis stroke	680	mm
	Z-axis stroke	180	mm
	Y-axis stroke	140	mm
	Y-axis Fast Mobility Rate	16	m/min
	X/Z axis Fast Mobility Rate	30	m/min

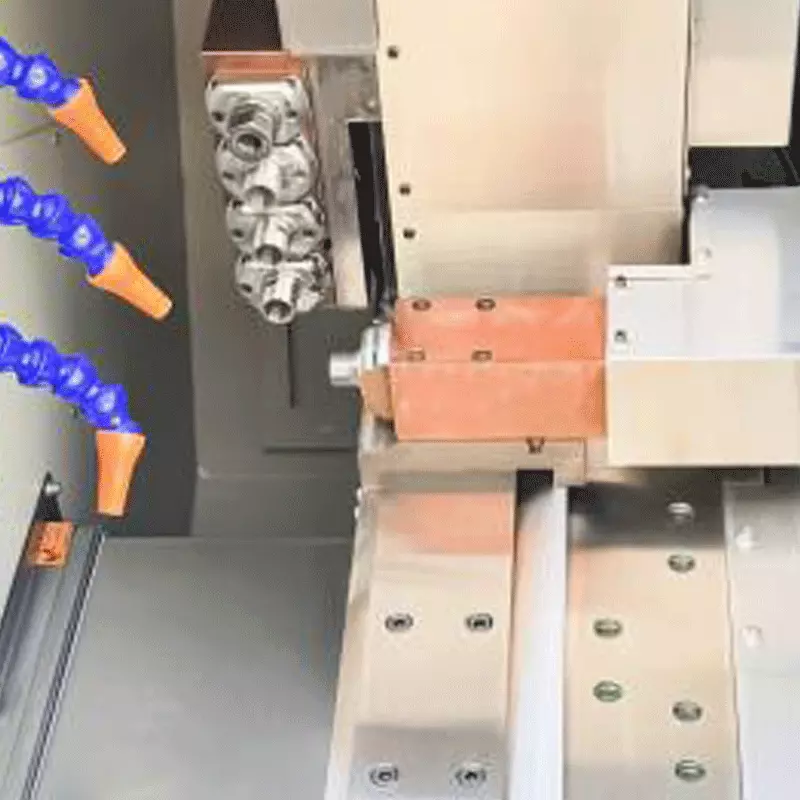

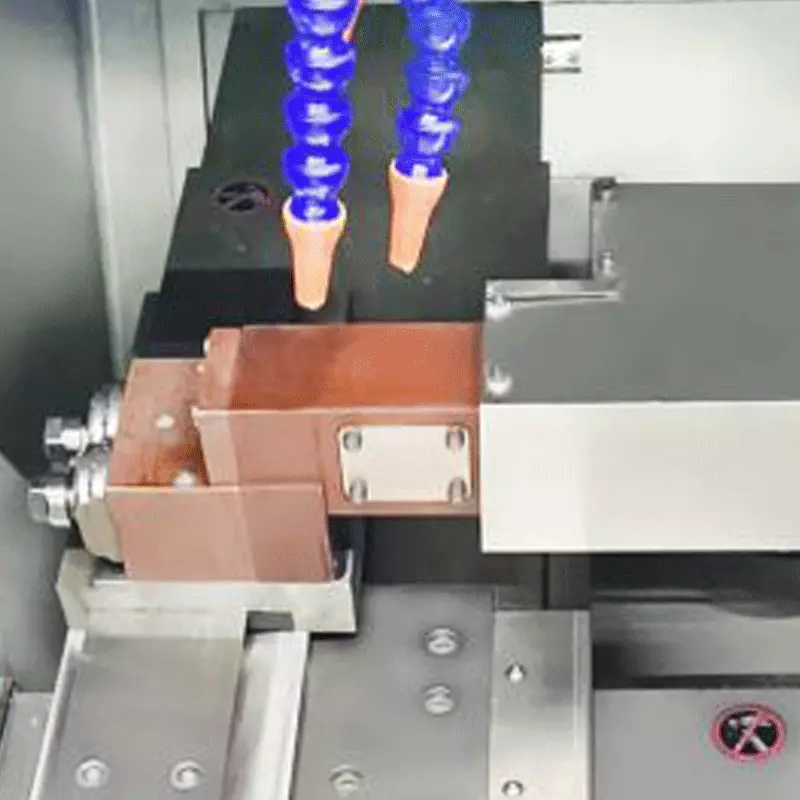

Knife holder	Knife tower driwe	Tooling	SET
	Number of cutters	6	Support
	Tool holder speciDcation	12*12	mm
	Speci0cation of Boring Tool Base	Φ20	mm
	Per head specifications	Er16	mm
Spindle	Diameter of spindle through hole	Φ19/Φ25/Φ32	mm
	Spindle center to ground height	1000	mm
	Distance from spindle center to front doc	460	mm
Control system	Controller	New Era/Baoyuan	Set
	Spindle motor power	3.7	kw
	Spindle speed	6000	rpm
	X-axis servomotor power	0.85	kw
	Z-axds servo motor power	0.85	kw
	Y-axis servo motor pexver	1	kw
	Power of the dynamic motor	0.75	kw
Size	Lengthwidthheight	133013401500	mm
