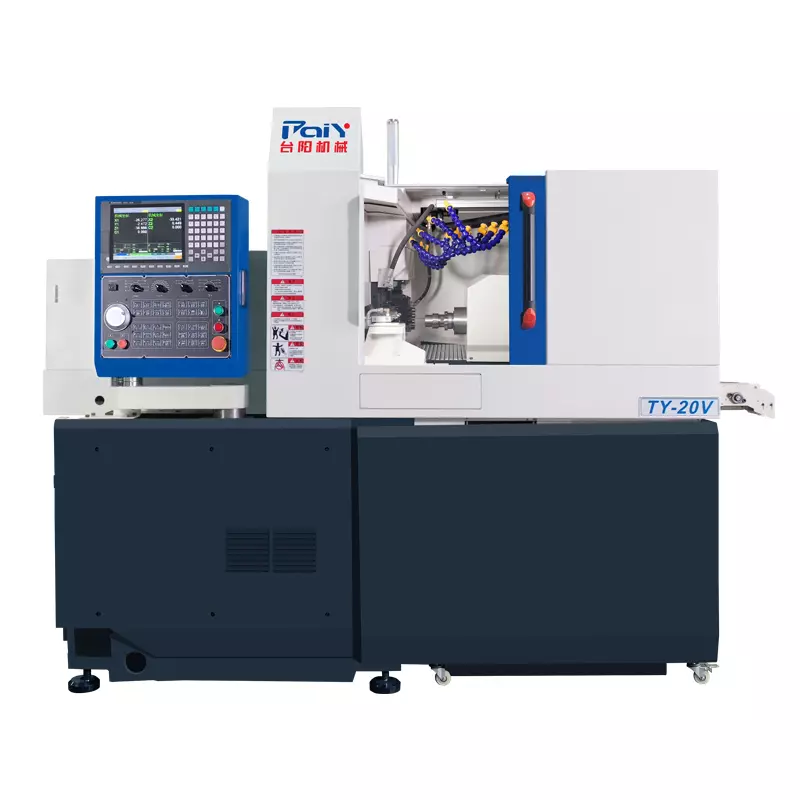

TY-20V
Brand: Taiyang
MOQ: 10 Pieces
Delivery time: 7 Day
High Machining Accuracy: Equipped with high-precision components such as ballscrews, guide rails, and bearings, along with a rotating guide bushing, it effectivelyensures workpiece stability during machining, maintaining higher coaxiality andsurface finish. Suitable for processing various long shaft components.

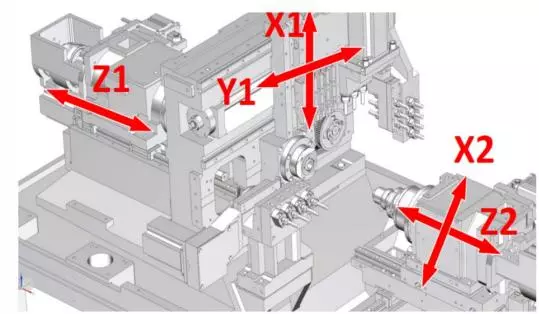

High Machining Efficiency: The machine incorporates a dual-spindle and dual-channel system design, enabling both synchronous and sequential machiningoperations on the front and rear spindles. lt is also equipped with multiple toolturrets featuring overlapping operation capabilities, significantly reducingmachining cycle time. With high rapid traverse rates in the X/Y/Z axes, non-cuttingtime can be effectively minimized.
Wide Machining Range: Typically supports bar materials up to 20mm in diameter.The machining length in a single clamping can reach over 200mm. it can performvarious machining operations such as turning, milling, driling, boring, tapping.

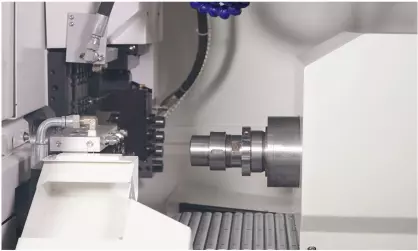

Product Details

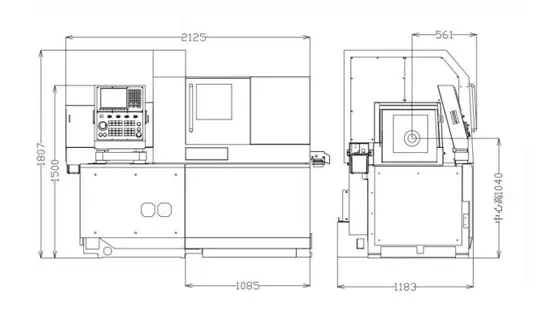

TY-20V Dimension Drawing
TY-20V Feature Data Sheet
| Model | TY-20 V | Tool Dimensions | Square Tool Holder | 16*165 (1 piece) 12*12 (4 pieces) |
| Max. Machining Diameter (D) | ø20mm | Drill Holder with Collet Chuck | 20mm Sleeve | |
| Max. Machining Length (L) | 200mm | Rotary Tool | ER11、ER16 | |
| Max. Drilling Diameter (Front) | ø10mm | Rapid Traverse Rate | All Axes (except X1 axis) | 32m/min |
| Max. Tapping Diameter (Front) | M6 | Motor | X1 Axes | 18m/min |
| Spindle Through-Hole Diameter | ø26mm | For Main Spindle Drive | 3.7KW | |
| Spindle Rotation Speed | MAX、10000min-1 | X、Y、Z1、Z2、X2 | 1.0KW | |
| Turret Rotary Tool Drilling Diameter | 07mm | For Sub-Spindle Drive | 3.7KW | |
| Turret Rotary Tool Tapping Diameter | M6 | For Tool Rotation Drive | 1.0KW | |
| Turret Rotary Tool Spindle Rotation Speed | MAX、6000min-1 | For Cutting Oil Pump | 0.75KW | |
| Max. Holding Diameter (Sub-spindle) | ø20mm | Center Height | 1040km | |
| Max. Workpiece Extension (Sub-spindle) | 50mm | Compatible System | Standard with Syntec | |
| Max. Drilling Diameter (Back Side) | ø8mm | Cutting Oil Tank Capacity | 170L | |
| Max. Tapping Diameter (Sub-spindle) | M6 | Ball Screw | HIWIN | |
| Sub-spindle Rotation Speed | MAX、10000min-1 | Guideways and Sliding Blocks | THK | |
| Number of Tool Stations | 21/32 | |||
