CK-46CSY2

Brand: Taiyang

MOQ: 10 Pieces

Delivery time: 7 Day

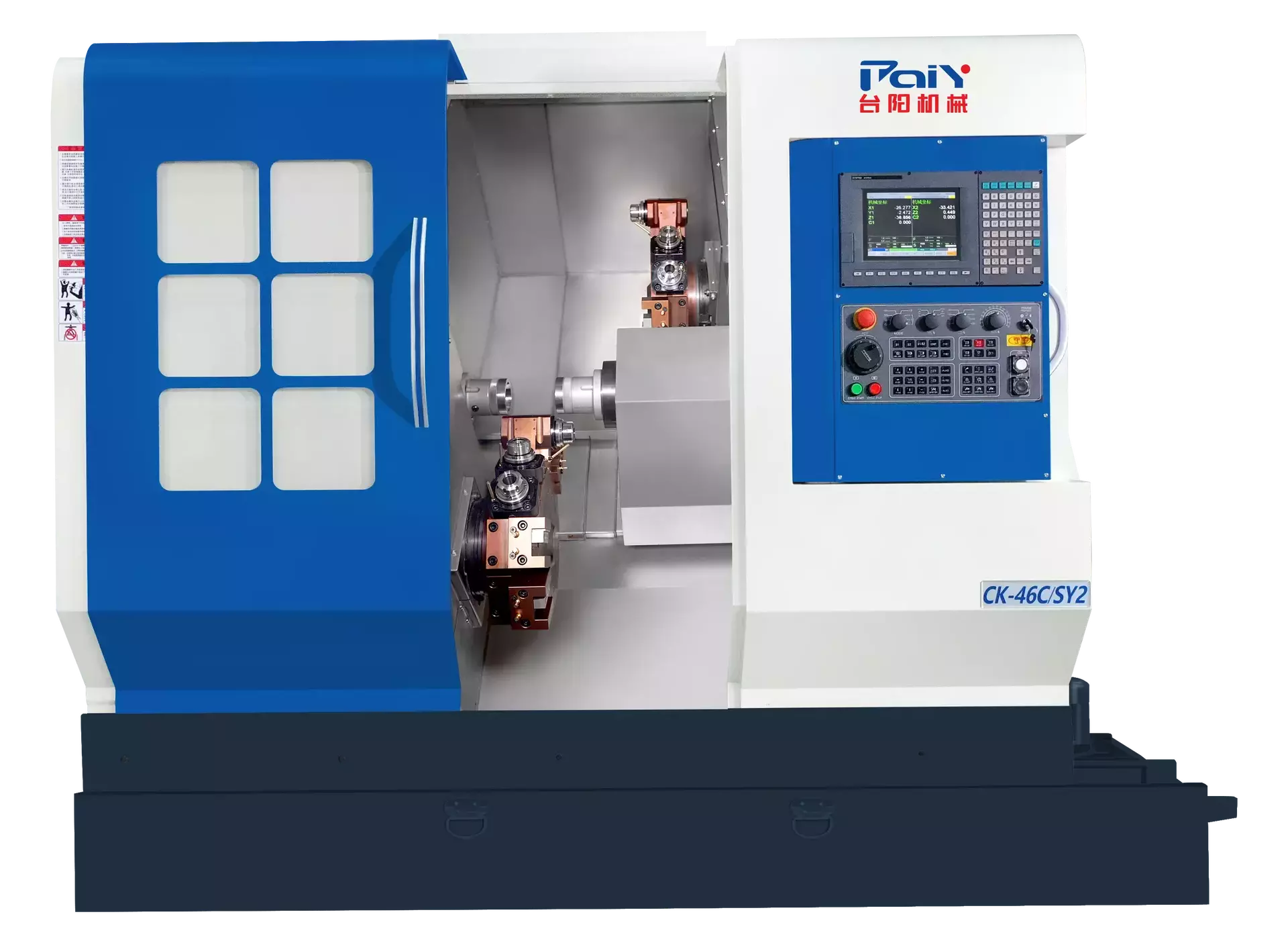

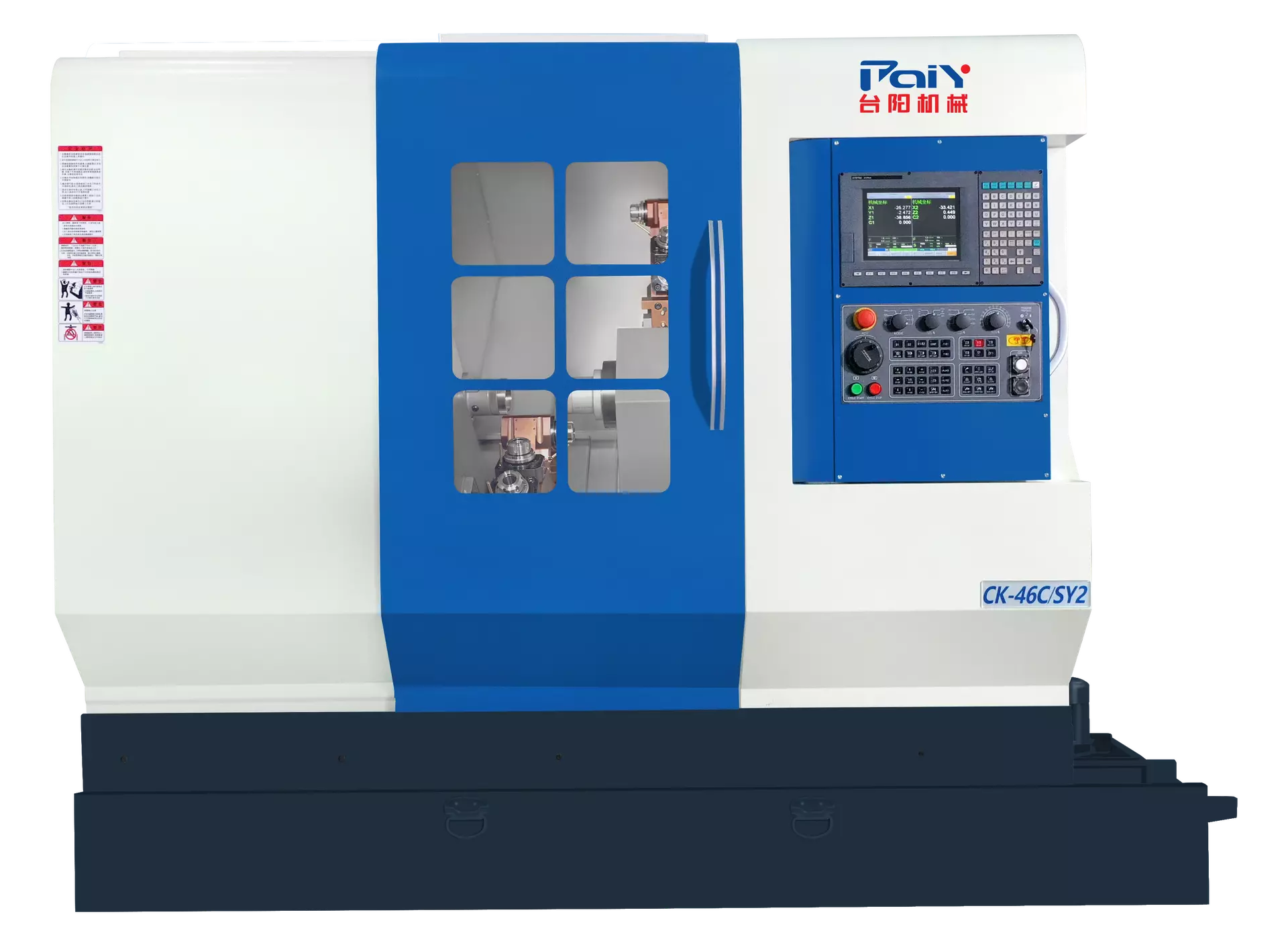

CK-46C/SY2 adopts an advanced"twin-spindle,twin-turret, twin Y-axis'structure.lt is a highly efficient, flexible, and versatile CNC machine toolspecifically designed for complex components, enabling high-precisionautomated composite machining in a single setup.

Efficient Twin-Spindle Synchronization:The sub-spindle performs part receiving and reverse machining, operatingsynchronously with the main spindle. This allows complete machining of bothfront and back sides in a single clamping,ensuring concentricity andeliminating errors from secondary clamping.
