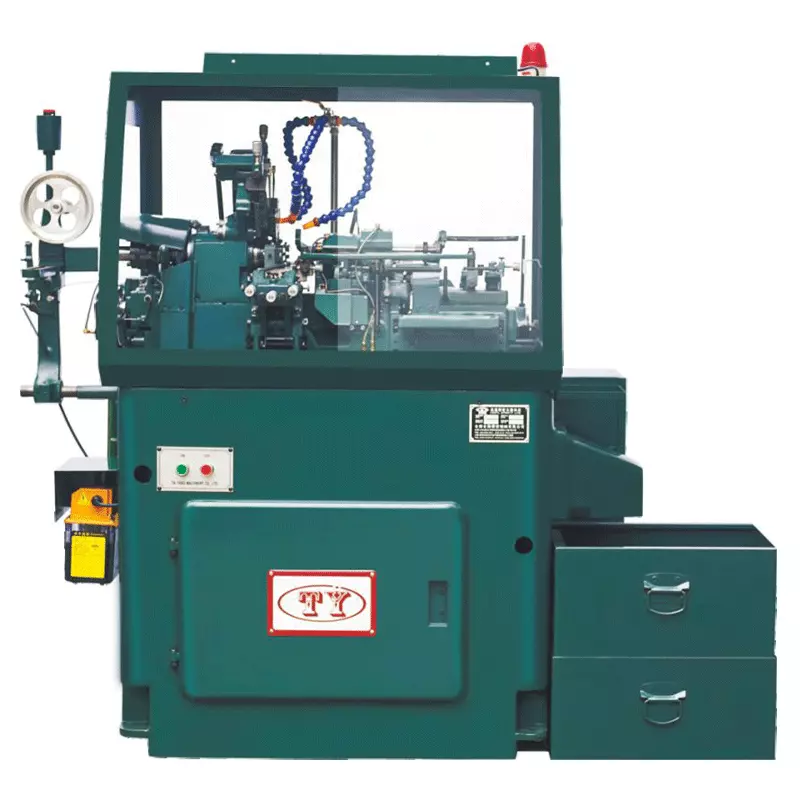

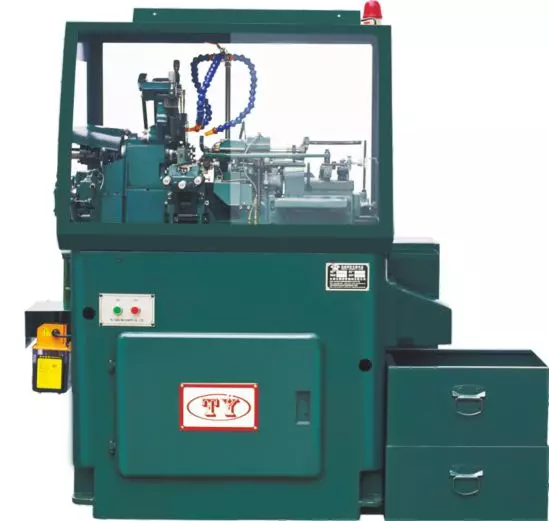

Automtic lathe A-2025
Brand: Taiyang
MOQ: 10 Pieces
Delivery time: 7 Day
1. The main shaft assembly is imported from Taiwan and adoptsP4 grade super-precision ball bearings to ensure the accuracy ofthe machine;
2.All tool holders are imported from Taiwan and adopt thelatest adjustment design to better improve the accuracy of theproduct;
3, The tapping machine adopts the clutch coil set of Kobelco,the top electromagnetic clutch supplier in the industry, toensure the tapping accuracy and service life;
4.Using Japan's NSK original bearings to ensure the accuratetransmission ofthe power of each running part.
Product Details
Technical Parameters
| Specification/macchine type | A -2025 |
| Spindle speed | 2000-7000rpm |
| Cam shaft speed | 1.4-45.7rpm |
| Number of speed | 2 |
| Number of tool | 5 |
| Control of main shart speed | 5 steps |
| Control of Cam shart speed | 15 steps |
| Max.length of processing | 35mm |
| Max,diameter of processing | 20mmФ |
| Max,diameter of drilling | 15mmФ |
| Max.diameter of drilling | 30mm |
| Max.diameter of tapping | Cu brass M12xP1.5 Fe iron M10xP1.25 |
| Max motor | 2HP(1.5kw) |
| Coolant oil pump motor | 1/4HP |
| Oil tank | 40L |
| Heing from floor to spindle center | 1085mm |
| Lathe dimensions | L1500xW600xH1600mm |
| Weight | 690KG |
| Measurement | L1700xW750xH1600mm |
Stand accessories
| Cam | 3(set) | Cutting Cooling Device | 1(set) |
| Tools box | 1(pc) | Adjust tools | 1(set) |
| Feeding surpport | 1(set) | Oil splash-prevention | 1(set) |
| Tapping jackct | 2(pc)20Ф.25Ф | Machine oil basin | 1(set) |
Stand accessories
| Taiwan Original | Thread milling device | Threading attachment | 1(set) |
| Taiwan Original | Noise-reducing feed tube | Sougd-Proof Feeding pipe | 1(set) |

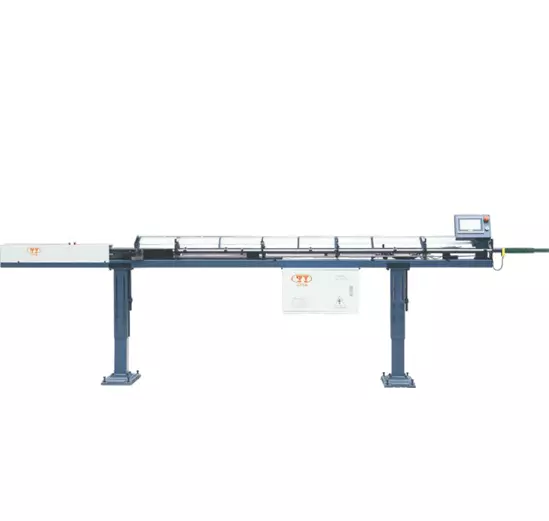

Matching edition of automatic feeder and automaticlathe
It adopts imported plexiglass with high transparency and good hardness, which is simple and easy to load and unload(fullcover optional).
